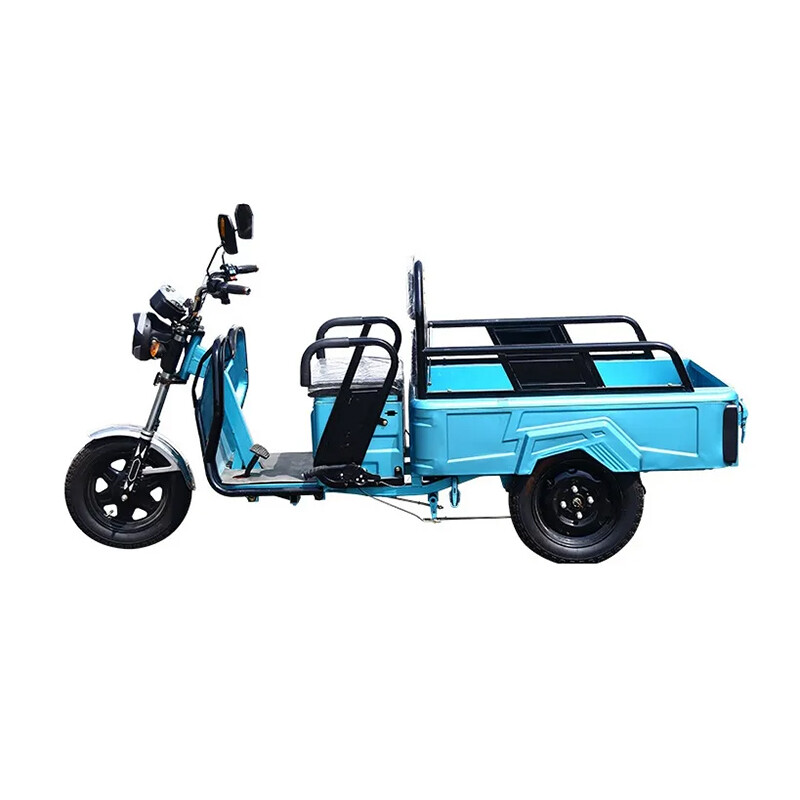

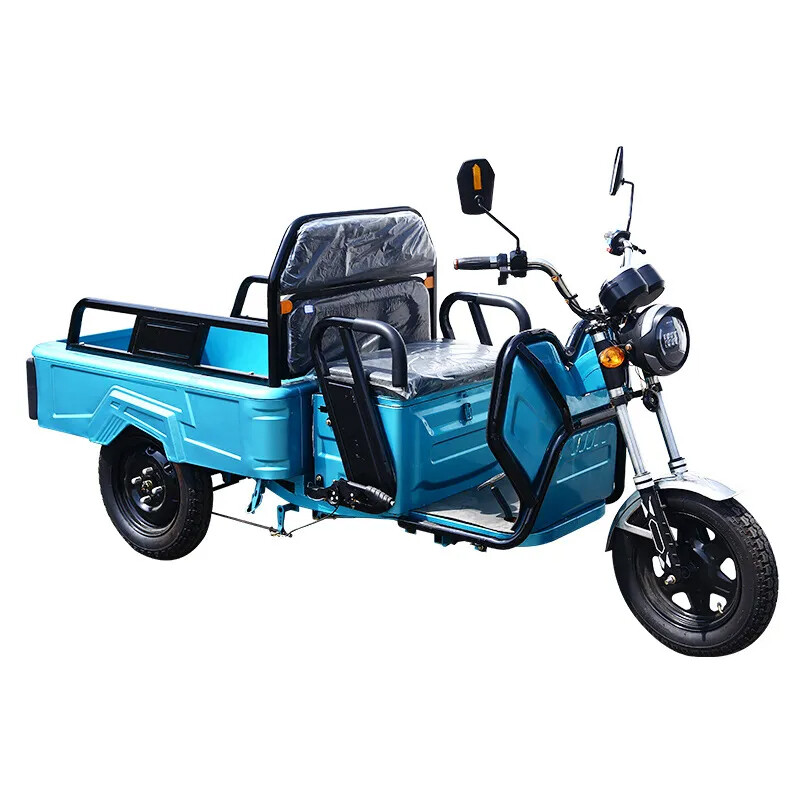

Mini Cargo Passenger Electric Tricycle

Product overview

Specification

Optional colors	red, blue, green, yellow, grey, silver
L×W×H(mm)	2740×1025×1295
Cargo Box Size (mm)	1300×950×300
Wheel base (mm)	1855
Wheel Track (mm)	830
Minumum ground clearance（mm）	≥150
Minimum turning radius（m）	≤4
Curb weight(kg)	190
Rated load (kg)	200
Max speed（km/h）	30
Grade ability（%）	≤15
Battery	60V32AH-58AH
Motor, controller (w)	60V650W
Range per charging（km）	40-70
Charging time (h)	6-8h
Front shock absorption	φ31 Drum shock absorber
Rear shock absorber	50×85 four pieces leaf sprig
Front/Rear tyre	3.00-12/3.00-12
Rim type	steel
Front/rear brake type	Front/Rear:Drum
Parking brake	Handbrake
Rear axle structure	Integrated Rear Axle
CKD	80 Units/40HQ 60 Units（With a shed）/40H
SKD	50 Units/40HQ 40 Units（With shed）/40HQ
